GPRS/EDGE/HSDPA


i









PHS100 3.5G HSDPA Modem





  Product Overview



PROLiNK® PHS100 3.5G HSDPA USB Modem is a higher data transfer speeds and capacity with single-band WCDMA and quad-band GSM wide area portable modem supporting all the different frequencies used by WCDMA, HSDPA, EDGE and GSM/GPRS networks worldwide.

The PHS100 provides users with ease of use to transfer large files, download graphic heavy information, send or receive SMS messages and receive large amounts of data quickly, to stay connected during their busy day. With PROLiNK® PHS100, users can stay connected on WCDMA networks at speed of 384kbps, supporting speeds up to 7.2Mbps down-link under HSDPA.



  High Speed Mobile Internet Access
  Boasting High Speed Packet Access (HSPA) and an innovative swiveling USB connector, allowing fast uplink speed rates of up to 384kbps and a downlink of up to 7.2Mbps.

  True Plug-n-Play Driver and Application Software Installation

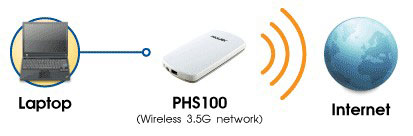

  PHS100 is a real Plug-n-Play device for mobile user, can be used for Laptop and Desktop users via USB connection.

  Extra Storage Drive
  Its built-in MicroSD card slot supports up to 8GB memory card, for documents, music or movies, eliminating the need for an additional USB memory stick.

  Key Features

  • Support HSDPA /UMTS 2100 MHz
  • GSM /GPRS /EDGE Quad-Band 850 /900 /1800 /1900 MHz
  • Voice Service, SMS Message, Data Service
  • Data transmission up to 7.2 Mbps (HSDPA)
  • Data transmission up to 384 Kbps (UMTS)
  • Data transmission up to 384 Kbps (EDGE)
  • High-capacity phone book /SMS box
  • SIM and USIM compatible

  Bandwidth Rate

  • Downlink up to 7.2 Mbps
  • Uplink up to 384 Kbps

  Physical, Environmental Specifications

  • Dimensions: 70 (L) x 46 (W) x 10 (H) mm
  • Weight: 0.5 kg
  • Operating Temperature: -20°C ~ 55°C
  • Storage Temperature: -30°C ~ 65°C
  • Humidity: ≤93%
  • Vibration: 15g peak, 10 ~ 500Hz (Non-operating)

  Accessories

  • PC Software (Built-in)
  • USB Cable
  • Earphone (Optional)
