• Express Internet Access, capable of ADSL2 / 2+
• Universal Plug and Play (UPnP) Compliant
• SOHO Firewall Security with IP/bridge Filtering
• Parental Control
• Dynamic Domain Name System (DDNS)
• Available Syslog monitoring
• Ideal for Office Users


Faster Speed Internet Access with ADSL2+

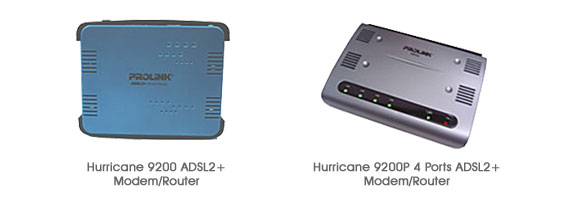

The H9200 complies with ADSL2+ standards for worldwide deployment and supports downstream rates of up to 24 Mbps and upstream rates of up to 1 Mbps. It is designed for small office, home office and residential users, enabling even faster speed Internet connections. User can enjoy ADSL services and broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier and faster than ever before.

SOHO Firewall Security with NAT Technology and Packet Filtering
Powered by NAT technology, dozens of network users can surf on the Internet and share the ADSL connection simultaneously by using one ISP account and one IP address. The NAT also provides a natural firewall to protect the users from hacker attacks. In addition to NAT technology, it supports IP/bridge Filtering feature to offer a higher-level security control.

• Compliance
  • Compliant with ADSL Standards
  - Full-rate ANSI T1.413 Issue 2
  - G.dmt (ITU G.992.1)
  - G.lite (ITU G.992.2)
  - G.hs (ITU G.994.1)
  - ADSL over ISDN/U-R2
  • Compliant with ADSL2 Standards
  - G.dmt.bis (ITU G.992.3)
  • Compliant with ADSL2+ Standards
  - G.ADSL2+ (ITU G.992.5)

  Network Protocols and Features
  • NAT, static routing and RIP-1/2
  • NAT supports PAT and multimedia applications
  • IP Alias
  • IP Policy Routing
  • Transparent Bridging
  • Dynamic Domain Name System (DDNS)
  • SNTP
  • DNS relay and IGMP proxy

  Firewall
  • Built-in NAT firewall
  • Prevent DoS attacks including IP Spoofing, Land Attack, Smurf Attack, Ping of Death, TCP SYN Flooding, etc.
  •IPt Filtering - port, source IP address, destination IP address

  Operating Environment
  • Operating temperature: 0 ~ 40C
  • Storage temperature: -20 ~ 70C
  • Humidity: 20 ~ 95% non-condensing

  ATM and PPP Protocols
  • ATM Adaptation Layer Type 5 (AAL5)
  • ATM Adaptation Layer Type 5 (AAL5)
  • Multiple Protocol over AAL5 (RFC 2684, formerlyRFC 1483)
  • Bridged or routed Ethernet encapsulation
  • VC and LLC based multiplexing
  • PPP over Ethernet (PPPoE)
  • PPP over ATM (RFC 2364)
  • OAM F4/F5

  Management
  • Web-based configuration
  • Firmware upgraded and configuration data upload and download via TFTP/FTP
  • Embedded Telnet server for remote and local management
  • SNMP supported
  • Support DHCP server/client/relay

  Hardware Specifications

  Physical Interface
  • LINE and Phone: ADSL port line and telephone (built-in Microfilter)
  • LAN: 4 ports 10/100M auto-sensing (MDI/MDI-X)
  • Factory default reset button
  • Power Jack/Power Switch

  Power Requirement
  •Input: 12V DC, 1A
